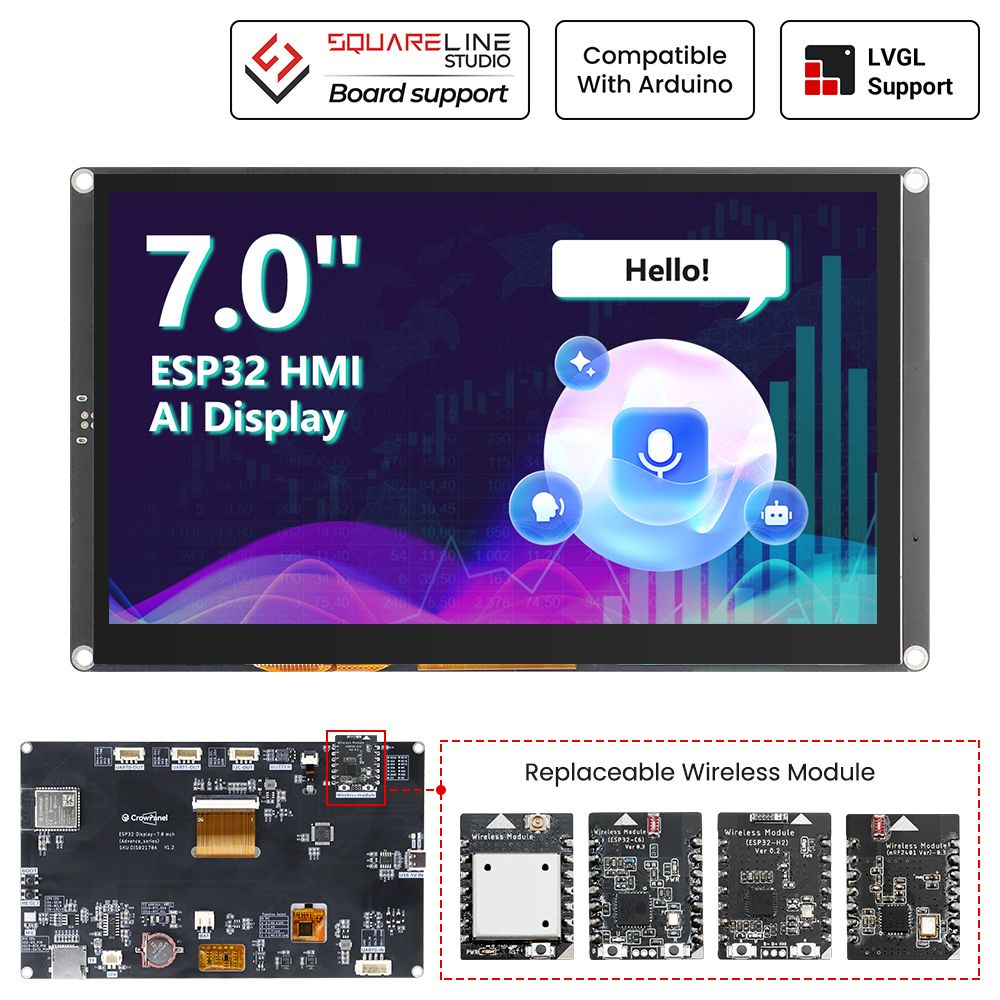

ELECROW CrowPanel Advance 7“ HMI| ESP32-S3 AI-Powered IPS Touch Screen (800×480) With Acrylic Cas

Description

ELECROW CrowPanel Advance 7“ HMI| ESP32-S3 AI-Powered IPS Touch Screen (800×480) With Acrylic Case The ELECROW CrowPanel Advance 7″ HMI is a cutting-edge Human-Machine Interface display that seamlessly integrates advanced technology with ease of use. Powered by the ESP32-S3-WROOM-1-N16R8 module, it features a dual-core 32-bit LX7 microprocessor clocked at up to 240MHz, providing the computational power needed for demanding applications. This makes it an excellent choice for projects ranging from industrial automation to interactive smart home devices. The robust processing capabilities ensure smooth operation, even when handling complex tasks such as real-time data processing or graphical user interface rendering. Features: Supports multiple development environments: Arduino IDE, Espressif IDF, PlatformIO, Micro Python. Compatible with LVGL graphics library for creating advanced user interfaces. Built-in LVGL demo and Arduino example for quick start. Rich peripheral interfaces: UART, I2C, SD card slot, battery socket, audio interfaces. Wireless connectivity: 2.4 GHz Wi-Fi and Bluetooth 5.0. Supports replaceable wireless modules for Zigbee, LoRa, NF2401, Matter, Thread, Wi-Fi 6. AI capabilities: voice command interaction, voice recognition, voice synthesis. 7-inch IPS LCD with 800×480 resolution and capacitive touch. Wide viewing angle of 178 degrees. Comes with an acrylic case for protection and easy mounting. Specifications: Main Chip- ESP32-S3-WROOM-1-N16R8 CPU/SoC high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz System Memory 512KB SRAM、8M PSRAM Memory 16M Flash，384KB ROM Development Language C/C++ Development Environment ESP-IDF、Arduino IDE、PlatformIO、LVGL Screen Size 7.0 inch Diver IC SC7277 Resolution 800×480 Display Panel IPS Panel Touch Panel Capacitive Single Touch Viewing Angle 178° Brightness 400 cd/m²(Typ.) Color Depth 16-bit Wireless Communication – Onboard Antenna WiFi Support 2.4GHz, 802.11a/b/g/n Bluetooth Support Bluetooth 5.0 and BLE Other Zigbee、LoRa、nRF2401、Matter、Thread and Wi-Fi 6 (Optional) Interface/Function Interface USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc. Function RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc. Button/LED Indicator Reset Button Yes, press to reset the device Boot Button Yes, press and hold the power button to burn the program PWR Power indicator CHG Lithium battery charging status, completion indication Other Installation method Back hanging, fixed hole Operating temperature -20~70 °C Storage temperature -30~80 °C Power Input 5V/2A, USB or UART terminal Active Area 156mm x 87mm Dimensions 181.26 x 108.36 x 16mm Configuration: Applications: Industrial automation. Smart city. Smart home. Medical equipment. Agricultural technology. Environmental monitoring. Energy management. Logistics and warehousing. Retail and catering. Education and research. Package Include: Documents: Wiki Tutorial from makerguides ESP32-S3 Datasheet Elecrow CrowPanel Advance 7.0 GitHub Repository ESP Boards Review of CrowPanel Advance 7.0 Distributor Certificate How to use:
