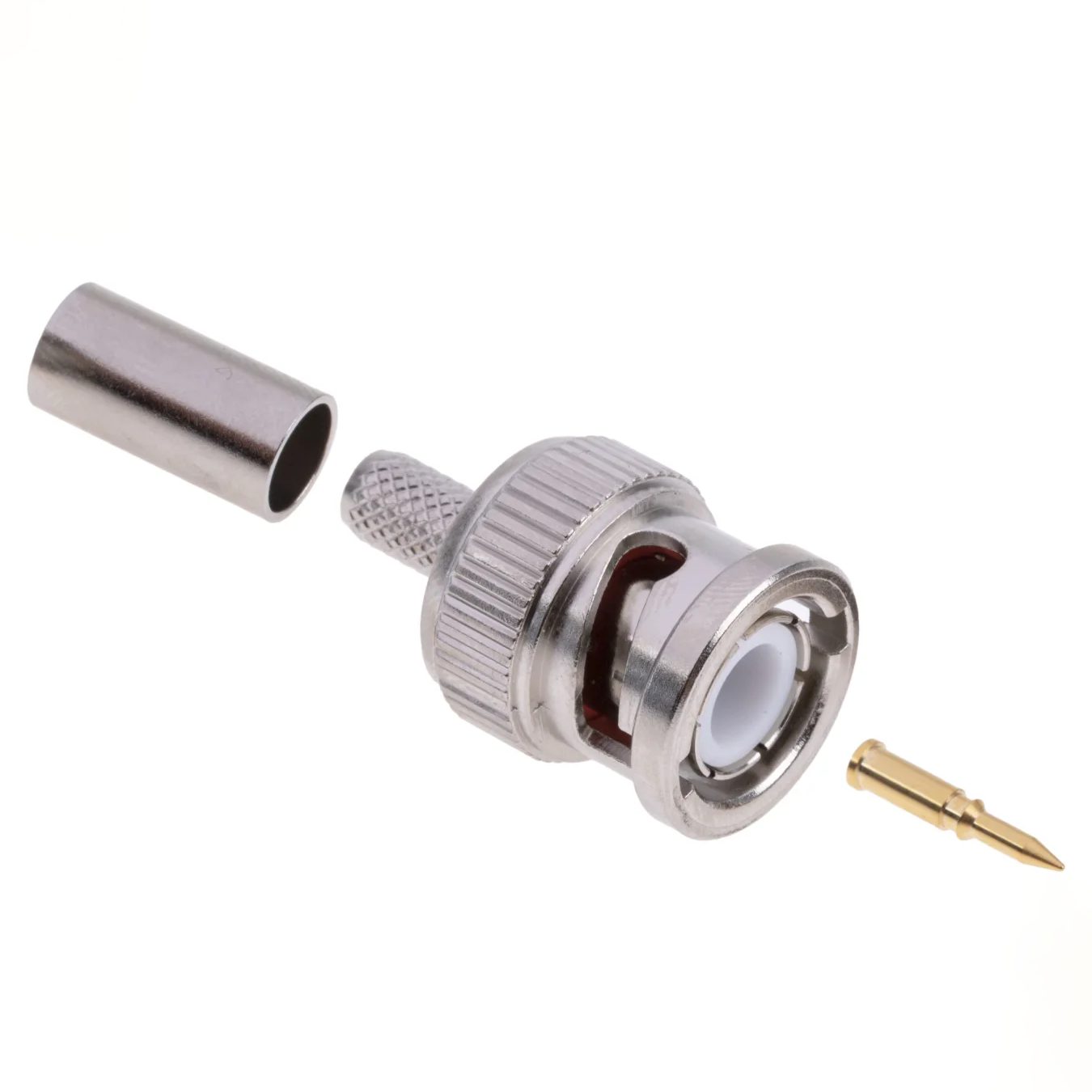

RG58 Crimp Male BNC Connector

Description

RG58 Crimp Male BNC Connector is a high-performance coaxial connector designed for use with RG58 cables. It provides a secure and reliable connection for RF, video, and data transmission applications. Featuring a crimp-style attachment, it ensures low signal loss and excellent durability, making it ideal for CCTV, networking, test equipment, and radio communications. This male BNC RF connector is specifically designed for crimp attachment to RG58 coaxial cable with Nickle plated outer jacket. Customer can crimp attach to RG 58 coaxial cable using readily-available crimp tools BNC connectors connect with a twist lock, making them popular for RF applications. Features: Ensures a strong, vibration-resistant connection. Designed for high-frequency applications with minimal interference. Made from high-quality nickel-plated brass for corrosion resistance. Offers a 50Ω impedance, suitable for RF and communication applications. Ideal for tight spaces and portable equipment. Specifications: Connector Type: BNC Male Material: Nickel-plated brass body with Copper-plated center pin Cable Compatibility: RG58 Coaxial cable Attachment Method: Crimp-on Body Material: Nickel-Plated Brass Center Pin Material: Copper -Plated Brass Characteristic Impedance: 50Ω Frequency Range: Up to 4 GHz Working Voltage(RMS): 500V Dielectric Withstanding Voltage(RMS): 1500V Maximum Voltage Standing Wave Ratio (VSWR): 1.3 Insulator Resistance: 5000 MΩ Temperature Range: – 55°C to +85°C Dimensions Drawing: Applications: RF Communication Systems. CCTV Surveillance. Networking & Data Transmission. Test & Measurement Equipment. Broadcast & Video Applications. Package Contents: 1 X RG58 Crimp Male BNC Connector.
