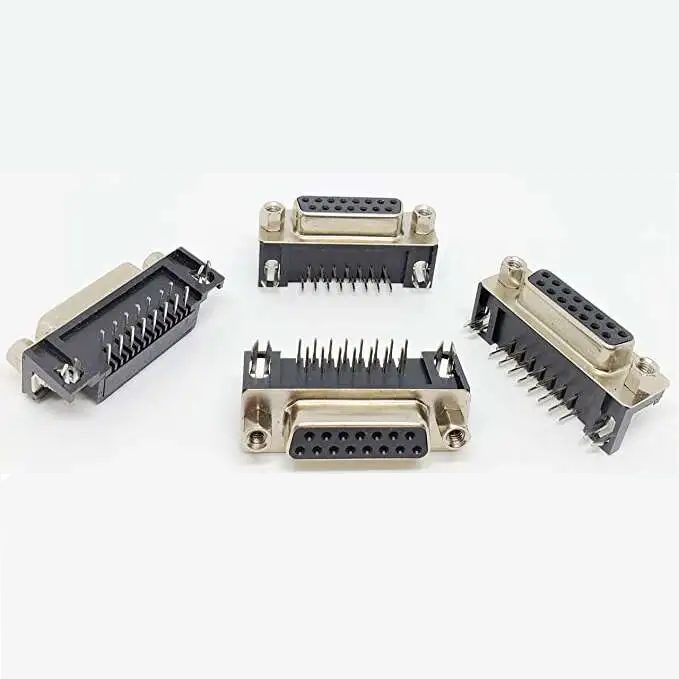

DA15 Right Angle PCB Solder Female D-type Connector 15 Hole 2 Row

Description

The DA15 Right Angle PCB Solder Female D-type Connector is a compact, reliable electrical component designed to facilitate secure connections in various applications. With 15 pins arranged in two rows, this connector allows for efficient data and signal transmission. The right-angle mounting configuration helps save space on the printed circuit board (PCB) by orienting the connector at a 90-degree angle, making it ideal for designs with limited space. It is typically used in industrial, telecommunications, and electronic applications requiring a stable and robust connection. Features: The D-type form factor ensures compatibility with a wide range of other equipment and connectors, making it ideal for diverse applications. The 15 holes in 2 rows provide a wide range of connectivity options, supporting various signal, data, and power applications. Right-Angle Design allows for a compact footprint and easy routing of PCB traces, perfect for space-constrained designs. The female D-type connector provides a stable connection, preventing accidental disconnections or signal interference. Made from high-quality materials metal contacts and plastic housing, designed to withstand mechanical stresses and electrical usage. The soldering process ensures strong and reliable electrical contacts, which minimize the chances of loose or intermittent connections. Specifications: Connector Model: DA15 Connector Type: PCB Solder D-Type Gender of Connector: Female Body Orientation: Right-Angle Termination Type: Solder cup Mounting Style: Through Hole (PCB soldering) Number of Holes: 15 Hole Row Configuration: 2 Row Housing Material: Metal with plastic insulation Contact Material: Brass Shell Material: Nickel-plated steel Applications: Telecommunications Equipment. Industrial Control Systems. Audio/Video Systems. Test Equipment. Computer Peripherals. Medical Devices.
