ELECROW CrowPanel 4.3″ HMI ESP32 Display 480×272 RGB TFT LCD Touch Screen With Acrylic Case

Description

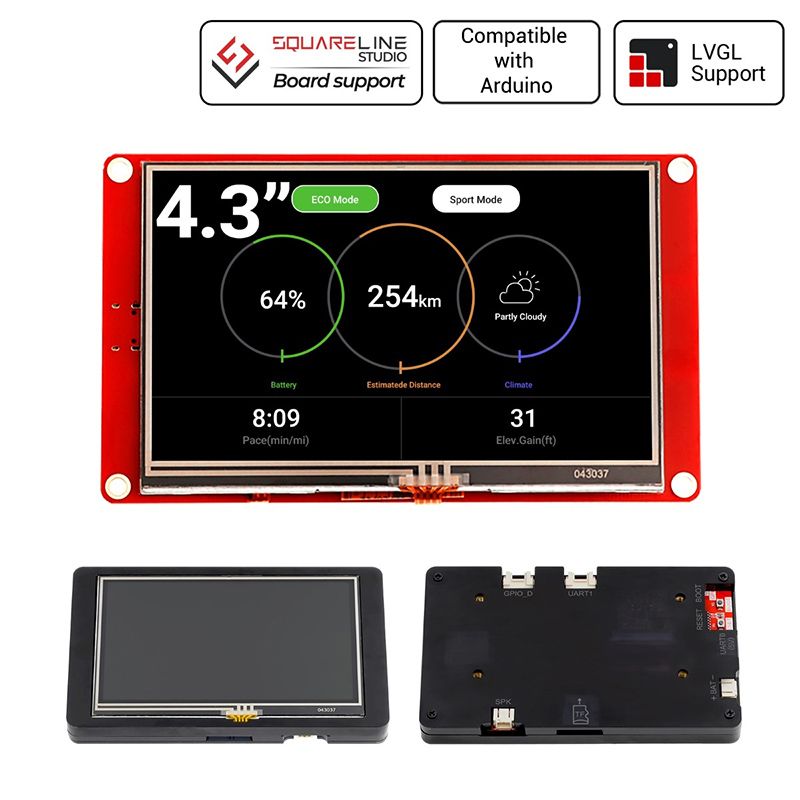

ELECROW CrowPanel 4.3″ HMI ESP32 Display 480×272 RGB TFT LCD Touch Screen With Acrylic Case The Elecrow CrowPanel 4.3″ HMI ESP32 Display is a versatile human-machine interface (HMI) module designed to empower developers in creating advanced IoT and embedded applications. Featuring a 4.3-inch RGB TFT LCD screen with a resolution of 480×272, this display delivers crisp visuals and responsive interaction through its resistive touch panel. Powered by the ESP32-S3-WROOM-1-N4R2 module, it incorporates a dual-core 32-bit LX6 microprocessor with a clock speed of up to 240MHz, providing robust performance. The module integrates 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0, enabling seamless wireless connectivity for applications such as smart home systems, industrial automation, medical equipment, and automotive HMIs. Features: Integrated ESP32-S3-WROOM-1-N4R2 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatibility 5.0; Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library; Built-in LVGL demo interface and Arduino example, plug and play; LCD 480×272 4.3 inches TFT-LCD with driver IC NV3047; Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields. Specification: Category Specification Model 4.3 inches CrowPanel ESP32 display Main Processor ESP32-S3-WROOM-1-N4R2 Resolution 480 × 272 Touch Type Resistive Touch Screen Display Type TN Panel Screen TFT-LCD Screen Display Driver NV3047 External Power Supply DC 5V-2A Interface 1× TF Card Slot, 2× GPIO, 1× Speaker, 2× UART1, 1× UART0 Button BOOT Button and Reset Button Active Area 95.04mm × 53.86 mm (W × H) Working Temperature -20℃ to 70℃ Storage Temperature -30℃ to 80℃ Configuration: Applications: Automotive HMI. Medical equipment. Industrial control. Power. Civil electronics. Automation. GPS. New energy. IoT application devices. Package Include: 1x CrowPanel ESP32 Display-4.3 Inch Display. 1x USB-A to Type-C Cable. 1x Crowtail/Grove to 4pin DuPont cable. 1x Resistive touch pen. Documents: Wiki User Manual Schematic Diagram 3D File Specification of LCD ESP32-S3-WROOM-1-N4R2 Datasheet Outline Dimensions LVGL Reference openHASP Github CE Certificate Distributor Certificate How to use:
